YT series motor are totally enclosed fan cooled (TEFC). Three-phase squirrel cage induction motors, it is national uniform design in conformity with the relevant standards of IEC34-1 and JB/T10391-2008, enjoys international interchangeable features.
YT series motors have outstanding performance such as high efficiency, energy-saving, high starting torque, low noise, slight vibration, reliable operation and easy maintenance, etc.
YT series motors are widely used in many places, where there do not exist combustible, explosive or corrosive gas, special requirements, such as machine tools, pumps, blowers, transport machinery, mixer, agriculture machinery and food machines, etc
Operating conditions
Ambient temperature:-15℃≤0≤40℃
Altitude not exceeding 1000m
Rated voltage:380V or any voltage between 220-760V
Rated frequency:50Hz、60Hz
Protection class:IP44、IP54、IP55
Insulation class:B、F、H
Cooling method:ICO141
Duty:S1 (continuous)
Connection:Star-connection for up to 3kw,
delta-connection for 4kw and above.
|
Type No. |
Output |
Full load |
75% Load |
50%Load |
Locked torque Rated torque TST/TFL |
Locked current Rated torque IST/IFL |
Max torque Rated torque TM/TFL |
||||||
|
kw |
HP |
Current (A) |
Speed (r/min) |
Eff (%) |
Power factor cosΦ |
Eff (%) |
Power factor cosΦ |
Eff (%) |
Power factor cosΦ |
||||
|
Synchronous Speed 3000 rpm |
|||||||||||||
|
YT80M1-2 |
0.75 |
1 |
1.81 |
2830 |
75.0 |
0.84 |
73.8 |
0.79 |
72.0 |
0.68 |
2.2 |
6.5 |
2.3 |
|
YT80M2-2 |
1.1 |
1.5 |
2.52 |
2830 |
77.0 |
0.86 |
76.5 |
0.81 |
74.0 |
0.71 |
2.2 |
7.0 |
2.3 |
|
YT90S-2 |
1.5 |
2 |
3.44 |
2840 |
78.0 |
0.85 |
77.5 |
0.80 |
76.0 |
0.71 |
2.2 |
7.0 |
2.3 |
|
YT90L-2 |
2.2 |
3 |
4.83 |
2840 |
80.5 |
0.86 |
79.7 |
0.82 |
77.6 |
0.73 |
2.2 |
7.0 |
2.3 |
|
YT100L-2 |
3.0 |
4 |
6.39 |
2870 |
82.0 |
0.87 |
81.3 |
0.83 |
79.3 |
0.74 |
2.2 |
7.0 |
2.3 |
|
YT112M-2 |
4.0 |
5.5 |
8.17 |
2890 |
85.5 |
0.87 |
84.8 |
0.83 |
82.8 |
0.73 |
2.2 |
7.0 |
2.3 |
|
YT132S1-2 |
5.5 |
7.5 |
11.7 |
2900 |
85.5 |
0.88 |
84.9 |
0.86 |
83.0 |
0.79 |
2.0 |
7.0 |
2.3 |
|
YT132S2-2 |
7.5 |
10 |
15.0 |
2900 |
86.2 |
0.88 |
85.5 |
0.86 |
84.0 |
0.79 |
2.0 |
7.0 |
2.3 |
|
YT160M1-2 |
11 |
15 |
21.8 |
2930 |
87.2 |
0.88 |
86.5 |
0.86 |
85.0 |
0.79 |
2.0 |
7.0 |
2.3 |
|
YT160M2-2 |
15 |
20 |
29.4 |
2930 |
88.2 |
0.88 |
87.6 |
0.85 |
86.4 |
0.80 |
2.0 |
7.0 |
2.3 |
|
YT160L-2 |
18.5 |
25 |
35.5 |
2930 |
89.0 |
0.89 |
88.5 |
0.86 |
87.2 |
0.81 |
2.0 |
7.0 |
2.2 |
|
YT180M-2 |
22 |
30 |
42.2 |
2940 |
89.0 |
0.89 |
88.1 |
0.87 |
87.0 |
0.81 |
2.0 |
7.0 |
2.2 |
|
YT200L1-2 |
30 |
40 |
56.9 |
2950 |
90.0 |
0.89 |
88.7 |
0.86 |
87.2 |
0.79 |
2.0 |
7.0 |
2.2 |
|
YT200L2-2 |
37 |
50 |
69.8 |
2950 |
90.5 |
0.89 |
89.7 |
0.86 |
88.0 |
0.80 |
2.0 |
7.0 |
2.2 |
|
Synchronous Speed 1500 rpm |
|||||||||||||
|
YT80M1-4 |
0.55 |
0.75 |
1.51 |
1390 |
73.0 |
0.76 |
71.5 |
0.66 |
70.0 |
0.52 |
2.4 |
6.0 |
2.3 |
|
YT80M2-4 |
0.75 |
1 |
2.01 |
1390 |
74.5 |
0.76 |
73.0 |
0.67 |
74.5 |
0.56 |
2.3 |
6.0 |
2.3 |
|
YT90S-4 |
1.1 |
1.5 |
2.75 |
1400 |
78.0 |
0.78 |
77.0 |
0.71 |
74.8 |
0.58 |
2.3 |
6.5 |
2.3 |
|
YT90L-4 |
1.5 |
2 |
3.65 |
1400 |
79.0 |
0.79 |
77.5 |
0.72 |
76.0 |
0.61 |
2.3 |
6.5 |
2.3 |
|
YT100L1-4 |
2.2 |
3 |
5.03 |
1430 |
81.0 |
0.82 |
80.3 |
0.74 |
78.2 |
0.61 |
2.3 |
7.0 |
2.3 |
|
YT100L2-4 |
3.0 |
4 |
6.82 |
1430 |
82.5 |
0.81 |
81.6 |
0.75 |
80.0 |
0.63 |
2.2 |
7.0 |
2.3 |
|
YT112M-4 |
4.0 |
5.5 |
8.77 |
1440 |
84.5 |
0.82 |
83.3 |
0.76 |
81.8 |
0.64 |
22. |
7.0 |
2.3 |
|
YT132S-4 |
5.5 |
7.5 |
11.6 |
1440 |
85.5 |
0.84 |
84.2 |
0.78 |
82.9 |
0.68 |
2.2 |
7.0 |
2.3 |
|
YT132M-4 |
7.5 |
10 |
15.4 |
1440 |
87.0 |
0.85 |
86.1 |
0.80 |
84.9 |
0.70 |
2.2 |
7.0 |
2.3 |
|
YT160M-4 |
11 |
15 |
22.6 |
1460 |
88.0 |
0.84 |
87.4 |
0.79 |
85.1 |
0.68 |
2.2 |
7.0 |
2.3 |
|
YT160L-4 |
15 |
20 |
30.3 |
1460 |
88.5 |
0.85 |
87.8 |
0.80 |
86.1 |
0.69 |
2.2 |
7.0 |
2.3 |
|
YT180M-4 |
18.5 |
25 |
35.9 |
1470 |
91.0 |
0.86 |
89.9 |
0.81 |
88.0 |
0.71 |
2.2 |
7.0 |
2.2 |
|
YT180L-4 |
22 |
30 |
42.5 |
1470 |
91.5 |
0.86 |
90.7 |
0.81 |
90.1 |
0.72 |
2.0 |
7.0 |
2.2 |
|
YT200L-4 |
30 |
40 |
56.8 |
1470 |
92.2 |
0.87 |
91.3 |
0.82 |
90.5 |
0.73 |
2.0 |
7.0 |
2.2 |
|
Synchronous Speed 1000 rpm |
|||||||||||||
|
YT80M1-6 |
0.37 |
0.5 |
1.2 |
900 |
70.5 |
0.68 |
68.0 |
0.59 |
64.7 |
0.43 |
2.0 |
5.5 |
2.2 |
|
YT80M2-6 |
0.55 |
0.75 |
1.45 |
900 |
71.5 |
0.68 |
68.0 |
0.59 |
65.3 |
0.43 |
2.0 |
5.5 |
2.2 |
|
YT90S-6 |
0.75 |
1 |
2.25 |
910 |
72.5 |
0.70 |
70.5 |
0.61 |
66.9 |
0.47 |
2.0 |
5.5 |
2.2 |
|
YT90L-6 |
1.1 |
1.5 |
3.16 |
910 |
73.5 |
0.72 |
72.0 |
0.61 |
67.7 |
0.47 |
2.0 |
5.5 |
2.2 |
|
YT100L-6 |
1.5 |
2 |
3.97 |
940 |
77.5 |
0.74 |
76.3 |
0.66 |
73.5 |
0.53 |
2.0 |
6.0 |
2.2 |
|
YT112M-6 |
2.2 |
3 |
5.61 |
940 |
80.5 |
0.74 |
79.2 |
0.66 |
77.3 |
0.53 |
2.0 |
6.0 |
2.2 |
|
YT132S-6 |
3.0 |
4 |
7.23 |
960 |
83.0 |
0.76 |
82.0 |
0.69 |
79.5 |
0.57 |
2.0 |
6.5 |
2.2 |
|
YT132M1-6 |
4.0 |
5.5 |
9.40 |
960 |
84.0 |
0.77 |
83.0 |
0.70 |
79.9 |
0.58 |
2.0 |
6.5 |
2.2 |
|
YT132M2-6 |
5.5 |
7.5 |
12.6 |
960 |
85.3 |
0.78 |
84.4 |
0.72 |
82.1 |
0.61 |
2.0 |
6.5 |
2.2 |
|
YT160M-6 |
7.5 |
10 |
17.0 |
970 |
86.0 |
0.78 |
85.2 |
0.72 |
83.6 |
0.63 |
2.0 |
6.5 |
2.2 |
|
YT160L-6 |
11 |
15 |
24.6 |
970 |
87.0 |
0.78 |
86.6 |
0.72 |
85.4 |
0.62 |
2.0 |
6.5 |
2.2 |
|
YT180L-6 |
15 |
20 |
31.4 |
970 |
89.5 |
0.81 |
88.5 |
0.75 |
86.8 |
0.63 |
1.8 |
6.5 |
2.0 |
|
YT200L1-6 |
18.5 |
25 |
37.7 |
970 |
89.8 |
0.83 |
88.7 |
0.77 |
87.5 |
0.69 |
1.8 |
6.5 |
2.0 |
|
YT200L2-6 |
22 |
30 |
44.6 |
970 |
90.2 |
0.83 |
89.3 |
0.75 |
87.7 |
0.65 |
1.8 |
6.5 |
2.0 |
|
Synchronous Speed 750rpm |
|||||||||||||
|
YT132S-8 |
2.2 |
3 |
5.85 |
710 |
80.5 |
0.71 |
79.7 |
0.62 |
77.8 |
0.49 |
2.0 |
5.5 |
2.0 |
|
YT132M-8 |
3.0 |
4 |
7.72 |
710 |
82.0 |
0.72 |
81.2 |
0.64 |
78.5 |
0.51 |
2.0 |
5.5 |
2.0 |
|
YT160M1-8 |
4.0 |
5.5 |
9.91 |
720 |
84.0 |
0.73 |
83.6 |
0.64 |
81.9 |
0.53 |
2.0 |
6.0 |
2.0 |
|
YT160M2-8 |
5.5 |
7.5 |
13.3 |
720 |
85.0 |
0.74 |
84.4 |
0.66 |
82.3 |
0.54 |
2.0 |
6.0 |
2.0 |
|
YT160L-8 |
7.5 |
10 |
17.7 |
720 |
86.0 |
0.75 |
85.1 |
0.68 |
83.2 |
0.57 |
2.0 |
5.5 |
2.0 |
|
YT180L-8 |
11 |
15 |
24.8 |
730 |
87.5 |
0.77 |
86.9 |
0.70 |
85.1 |
0.57 |
1.7 |
6.0 |
2.0 |
|
YT200L-8 |
15 |
20 |
34.1 |
730 |
88.0 |
0.76 |
87.3 |
0.71 |
86.4 |
0.61 |
1.8 |
6.0 |
2.0 |

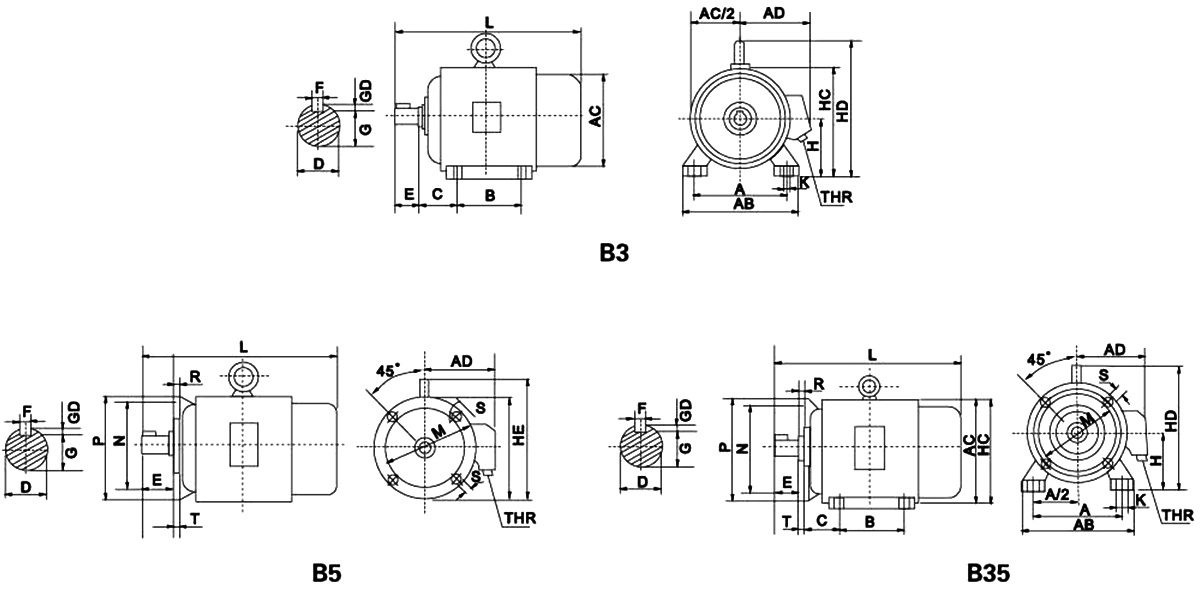

Overall & installtion diemsions
|
Frame size |
Poles |
Mounting dimensions |
over all dimensions |
||||||||||||||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
K |
M |
N |
P |
R |
S |
T |
AB |
AC |
AD |
HD |
L |
||
|
YT80 |
2.4,6 |
125 |
100 |
50 |
19 |
40 |
6 |
15.5 |
80 |
10 |
165 |
130 |
200 |
0 |
12 |
3.5 |
165 |
175 |
150 |
175 |
290 |
|
YT90S |
2.4,6 |
140 |
100 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
165 |
130 |
200 |
0 |
12 |
3.5 |
180 |
195 |
160 |
195 |
315 |
|
YT90L |
2,4,6 |
140 |
125 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
165 |
130 |
200 |
0 |
12 |
3.5 |
180 |
195 |
160 |
195 |
340 |
|
YT100L |
2,4,6 |
160 |
140 |
70 |
28 |
60 |
8 |
24 |
100 |
12 |
215 |
180 |
250 |
0 |
15 |
4.0 |
205 |
215 |
180 |
245 |
380 |
|
YT112M |
2,4,6 |
190 |
140 |
70 |
28 |
60 |
8 |
24 |
112 |
12 |
215 |
180 |
250 |
0 |
15 |
4.0 |
245 |
240 |
190 |
265 |
400 |
|
YT132S |
2,4,6,8 |
216 |
140 |
89 |
38 |
80 |
10 |
33 |
132 |
12 |
265 |
230 |
300 |
0 |
15 |
4.0 |
280 |
275 |
210 |
315 |
475 |
|
YT132M |
2.4.6.S |
216 |
178 |
89 |
38 |
80 |
10 |
33 |
132 |
12 |
265 |
230 |
300 |
0 |
15 |
4.0 |
280 |
275 |
210 |
315 |
515 |
|
YT160M |
2.4,6.8 |
254 |
210 |
108 |
42 |
110 |
12 |
37 |
160 |
15 |
300 |
250 |
350 |
0 |
19 |
5.0 |
325 |
325 |
255 |
385 |
600 |
|
YT160L |
2.4,6,8 |
254 |
254 |
108 |
42 |
110 |
12 |
37 |
160 |
15 |
300 |
250 |
350 |
0 |
19 |
5.0 |
325 |
325 |
255 |
385 |
645 |
|
YT180M |
2.4,6,8 |
279 |
241 |
121 |
48 |
110 |
14 |
42.2 |
180 |
15 |
300 |
250 |
350 |
0 |
19 |
5.0 |
355 |
360 |
285 |
430 |
670 |
|
YT180L |
2.4,6,8 |
279 |
279 |
121 |
48 |
110 |
14 |
42.5 |
180 |
15 |
300 |
250 |
350 |
0 |
19 |
5.0 |
355 |
360 |
285 |
430 |
710 |
|
YT200L |
2.4,6,8 |
318 |
305 |
133 |
55 |
110 |
16 |
49 |
200 |
19 |
350 |
300 |
400 |
0 |
19 |
5.0 |
395 |
400 |
310 |
475 |
775 |
|
YT225S |
4,8 |
356 |
286 |
149 |
60 |
140 |
18 |
53 |
225 |
19 |
400 |
350 |
450 |
0 |
19 |
5.0 |
435 |
470 |
345 |
520 |
820 |
|
YT225M |
2 4.6,8 |
356 |
311 |
149 |
55 |
110 |
16 |
49 |
225 |
19 |
400 |
350 |
450 |
0 |
19 |
5.0 |
435 |
470 |
345 |
520 |
815 |
|
356 |
311 |
149 |
60 |
140 |
18 |
53 |
225 |
19 |
400 |
350 |
550 |
0 |
19 |
5.0 |
435 |
515 |
345 |
520 |
845 |
||
|
YT250M |
2 4,6.8 |
406 |
349 |
168 |
60 |
140 |
18 |
53 |
250 |
24 |
500 |
450 |
550 |
0 |
19 |
5.0 |
490 |
470 |
385 |
575 |
930 |
|
406 |
349 |
168 |
65 |
140 |
18 |
58 |
250 |
24 |
500 |
450 |
550 |
0 |
19 |
5.0 |
490 |
515 |
385 |
575 |
930 |
||
|
YT280S |
2 4,6,8 |
457 |
368 |
190 |
65 |
140 |
18 |
58 |
280 |
24 |
500 |
450 |
550 |
0 |
19 |
5.0 |
550 |
585 |
410 |
640 |
1000 |
|
457 |
368 |
190 |
75 |
140 |
20 |
67.5 |
280 |
24 |
500 |
450 |
550 |
0 |
19 |
5.0 |
550 |
585 |
410 |
640 |
1000 |
||
|
YT280M |
2 4,6,8 |
457 |
419 |
190 |
65 |
140 |
18 |
58 |
280 |
24 |
500 |
450 |
550 |
0 |
19 |
5.0 |
550 |
585 |
410 |
640 |
1050 |
|
457 |
419 |
190 |
75 |
140 |
20 |
67.5 |
280 |
24 |
500 |
450 |
550 |
0 |
19 |
5.0 |
550 |
585 |
410 |
640 |
1050 |
||
|
YT315S |
2 4,6,8,10 |
508 |
406 |
216 |
65 |
140 |
18 |
58 |
315 |
28 |
600 |
550 |
660 |
0 |
24 |
6.0 |
744 |
645 |
576 |
865 |
1240 |
|
508 |
406 |
216 |
80 |
170 |
22 |
71 |
315 |
28 |
600 |
550 |
660 |
0 |
24 |
6.0 |
744 |
645 |
576 |
865 |
1270 |
||
|
YT315M |
.2 4,6,8,10 |
508 |
457 |
216 |
65 |
140 |
18 |
58 |
315 |
28 |
600 |
550 |
660 |
0 |
24 |
6.0 |
744 |
645 |
576 |
865 |
1310 |
|
508 |
457 |
216 |
80 |
170 |
22 |
71 |
315 |
28 |
600 |
550 |
660 |
0 |
24 |
6.0 |
744 |
645 |
576 |
865 |
1340 |
||
|
YT315L |
2 4,6,8,10 |
508 |
508 |
216 |
65 |
140 |
18 |
58 |
315 |
28 |
600 |
550 |
660 |
0 |
24 |
6.0 |
744 |
645 |
576 |
865 |
1310 |
|
508 |
508 |
216 |
80 |
170 |
22 |
71 |
315 |
28 |
600 |
550 |
660 |
0 |
24 |
6.0 |
744 |
645 |
576 |
865 |
1340 |
||
|
YT355M |
2 4,6,8,10 |
610 |
560 |
254 |
75 |
140 |
20 |
67.5 |
355 |
28 |
740 |
680 |
800 |
0 |
24 |
6.0 |
740 |
750 |
680 |
1035 |
1540 |
|
610 |
560 |
254 |
95 |
170 |
25 |
86 |
355 |
28 |
740 |
680 |
800 |
0 |
24 |
6.0 |
740 |
750 |
680 |
1035 |
1570 |
||
|
YT355L |
2 4,6,8,10 |
610 |
630 |
254 |
75 |
140 |
20 |
67.5 |
355 |
28 |
740 |
680 |
800 |
0 |
24 |
6.0 |
740 |
750 |
680 |
1035 |
1540 |
|
610 |
630 |
254 |
95 |
170 |
25 |
86 |
355 |
28 |
740 |
680 |
800 |
0 |
24 |
6.0 |
740 |
750 |
680 |
1035 |
1570 |
||
ZHEJIANG QIZHI MOTOR CO., LTD. is a professional production of various kinds of small and medium-sized modern enterprise, the main products include ME2 series Grundfos high-efficiency aluminum motor, YT series three-phase asynchronous motor (Taiwan style), IE1 series three-phase asynchronous motor, IE2 series three-phase asynchronous motor, IE3 series super efficient three-phase asynchronous motor, YD series pole-changing multi-speed three phase asynchronous electric motor, YDT series three-phase consequent-poles asynchronous motor, YCT series electromagnetic speedregulating motor, MS series three-phase asynchronous motor with aluminium housing, YVF2 series three-phase frequency controlled asynchronous motor, YVF2 series of frequency conversion aluminum shell speed three-phase asynchronous motor, YEJ series electromagnetic braking three-phase asynchronous motor, YC/YCL series heavy-duty single-phase capacitors start induction motor, MLYL seriessingle-phase dual-capacitor induction motor, YYB Series pump for three-phase asynchronous motor, IRG/SW Single stage single pipette centrifugal pump, CDLICDLF stainless steel vertical multistage pump, etc. OEM YT series three-phase asynchronous motor (Taiwan style) Factory
ZHEJIANG QIZHI MOTOR CO., LTD. depending on the talent for the enterprise development, with strong technology research and development team, has the industry's most advanced automated nc production equipment, advanced technology and equipment, usingadvanced design software for product design, perfect modern management system, strictly in accordance with "ISO-9001"national quality management system certification, production to make the success rate of new product development speed and improve, for the same industry leading level. As Custom YT series three-phase asynchronous motor (Taiwan style) Suppliers, the company has advanced motor testing equipment, to guarantee product quality, won the domestic andforeign customers a wide range of trust and praise, the company through the Chinese CCC certification and CQC certification, ISO-
9001 international quality system certification, CE certification, SGS certification (ROHS), and obtained the national electrical products export quality license, with our continuously innovation in the face of the market; The products sell well all over the country and exported to southeast Asia, Germany, Italy, Poland, Britain, France, the Middle East, South America, Africa, Asia, etc. More than 80 countries and regions. In domestic widely used in air compressor, washing machine, water pump, fan, mechanical industry, reducer, such as the host.
We would like to more higher quality product, more lower preferential price, complete thoughtul pre-sale, sale, after-sale service, cooperate with friends from all walks of life, hand in hand advance together, altogether will create the glorious future.
Founded in
company area
Employees
Exported countries
Copyright © Zhejiang Qizhi Motor Co., Ltd.All Rights Reserved.
OEM YT series three-phase asynchronous motor (Taiwan style) Suppliers
