ML/YL series single-phase dual-capacitor induction motor Custom

Home / Products / Single-phase Motor / ML/YL Series / ML/YL series single-phase dual-capacitor induction motor

Product overview

ML/YL series single-phase capacitor asynchronous motor double value according to the national standard, the manufacture, has good starting and running performance, low noise, small volume, light weight, convenient maintenance, etc.Widely used in air compressors, pumps, water machine, refrigeration, medical machinery and small machinery.Use of only a single-phase power supply situation is particularly.

Operating Conditions

Ambient temperature:-15℃≤0≤40℃

Altitude:not exceeding 1000m

Rated voltage:380V

Rated frequency:50Hz、60Hz

Protection class:IP54、IP55

Insulation class:Class B/F

Cooling method :ICO141

Duty:S1 (continuous)

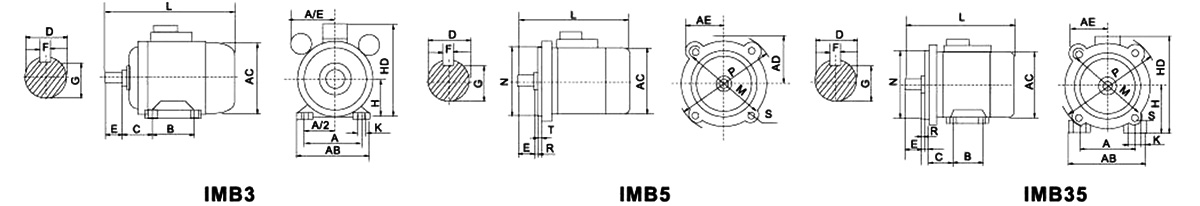

Overall & Installation dimensions

Frame No.	Mounting Dimensions(mm)															Overall Dimensions(mm)
Frame No.	A	B	C	D	E	F	G	H	K	M	N	P	R	S	T	AB	AC	AD	HD	L
71	112	90	45	14	30	5	11	71	7	130	110	160	0	10	3.5	145	145	140	180	255
80	125	100	50	19	40	6	15.5	80	10	165	130	200	0	12	3.5	160	165	150	200	295
90S	140	100	56	24	50	8	20	90	10	165	130	200	0	12	3.5	180	185	160	240	370
90L	140	125	56	24	50	8	20	90	10	165	130	200	0	12	3.5	180	185	160	240	400
100L	160	140	63	28	60	8	24	100	12	215	180	250	0	15	4.0	205	220	180	260	430
112M	190	140	70	28	60	8	24	112	12	215	180	250	0	15	4.0	245	250	190	300	455
132S	216	140	89	38	80	10	33	132	12	265	230	300	0	15	4.0	280	262	210	350	525
132M	216	178	89	38	80	10	33	132	12	265	230	300	0	15	4.0	280	262	210	350	553

Technical date

Type	Output		Voltage (V)	Frequency Hz	Current (A)	Speed (r/min)	Eff (%)	Power factor	Locked torque Rated torque Tstart/Tn	Locked current Rated torque Ist/In	Max torque Rated torque Tmax/Tn
Type	HP	KW	Voltage (V)	Frequency Hz	Current (A)	Speed (r/min)	Eff (%)	Power factor	Locked torque Rated torque Tstart/Tn	Locked current Rated torque Ist/In	Max torque Rated torque Tmax/Tn
ML/YL7112	0.5	0.37	220	50	2.73	2800	67	0.92	1.8	6.0	1.8
ML7YL7122	0.75	0.55	220	50	3.88	2800	70	0.92	1.8	6.0	1.8
MIJYL7114	0.33	0.25	220	50	1.99	1400	62	0.92	1.8	6.0	1.8
ML7YL7124	0.5	0.37	220	50	2.81	1400	65	0.92	1.8	6.0	1.8
MUYL8012	1	0.75	220	50	5.15	2800	72	0.92	1.8	6.0	1.8
ML/YL8022	1.5	1.1	220	50	7.02	2800	75	0.95	1.8	6.0	1.8
MUYL8014	0.75	0.55	220	50	4.0	1400	68	0.92	1.8	6.0	1.8
ML/VL8024	1	0.75	220	50	5.22	1400	71	0.92	1.8	6.0	1.8
ML/YL90S-2	2	1.5	220	50	9.4	2800	76	0.95	1.8	6.0	1.8
MI7YL90L-2	3	2.2	220	50	13.7	2800	77	0.95	1.8	6.0	1.8
MUYL90S-4	1.5	1.1	220	50	7.21	1400	73	0.95	1.8	6.0	1.8
ML/YL90L-4	2	1.5	220	50	9.57	1400	75	0.95	1.8	6.0	1.8
ML7YL100L-2	4	3	220	50	18.4	2820	78	0.95	1.8	6.0	1.8
MUYL100L1-4	3	2.2	220	50	13.9	1410	76	0.95	1.8	6.0	1.8
MUYL100L2-4	4	3	220	50	18.6	1420	77	0.95	1.8	6.0	1.8
ML/YL112M-2	5	3.7	220	50	22.2	2820	80	0.95	1.8	6.0	1.8
ML/YL112M-4	3	2.2	220	50	13.9	1410	76	0,95	1.8	6.0	1.8
ML7YL112M1-4	4	3	220	50	18.17	1420	77	0.95	1.8	6.0	1.8
ML/YL112M2-4	5	3.7	220	50	23	1430	78	0.95	1.8	6.0	1.8
ML/YL132S1-4	4	3	220	50	18.17	1420	77	0.95	1.8	6.0	1.8
ML/YL132S2-4	5	3.7	220	50	23	1430	78	0.95	1.8	6.0	1.8
ML7YL132M-4	7.5	5.5	220	50	32.5	1430	81	0.95	1.8	6.0	1.8

*. 1110V, 110V/220V,60Hz etc.models are available on request.
