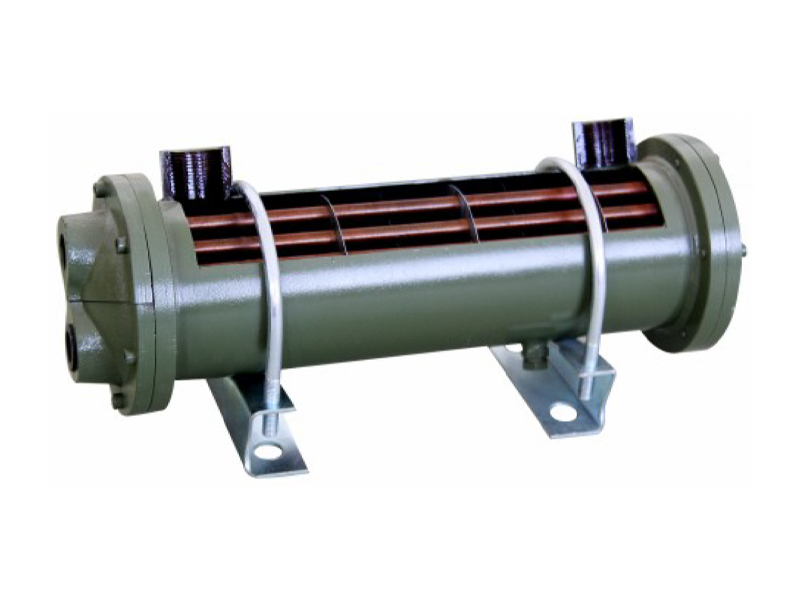

Introduction：

Cooler will be mainly used for lubrication, hydraulic, hydraulic system with low viscosity of the working medium (oil) cooled to the required temperature.

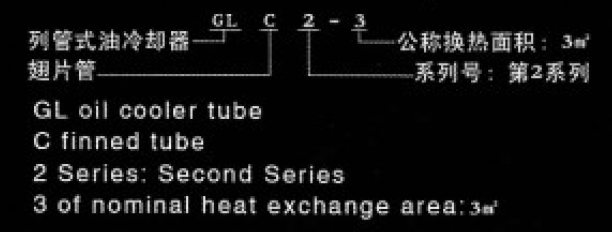

Model description：

Parameter Model	Area of cooling surface (m²）	Pressure (MPa)			Temperature (℃)				Medium viscosity (10-6 M2/S)	Oil flow range (L/min)	Oil /water flow ratio	Exchange heat (Kcal/h)	Weight
Parameter Model	Area of cooling surface (m²）	Working pressure	Oil pressure drop	Hydraulik pressure drop	Wofkmg termperature	Working oil termperature	The oil inlet tremperature	Oil outlet	Medium viscosity (10-6 M2/S)	Oil flow range (L/min)	Oil /water flow ratio	Exchange heat (Kcal/h)	Weight
GLC1-0.4	0.4	0. 63 1	≤0.1	≤0.05	25-30	≤100	55	≤46	10-50	10-35	1：1	1300-3300	10
-0.6	0.6									25-60		3300-5100	13
-0.8	0.8									35-60		3350-6500	15
-1.0	1.0									60-75		6100-7200	17
-1.2	1.2									60-85		6400-8400	19
GLC2-1.3	1.3	0.63	≤0.1	≤0.05	25-30	≤100	55	≤46	10-50	30-85	1：1	6400-11000	21
-1.7	1.7									30-113		7400-17000	26
-2.1	2.1									30-113		9200-21500	29
-2.6	2.6									35-125		11300-26000	33
-3.0	3.0									35-125		12700-30000	37
-3.5	3.5									40-150		14500-34500	41
GLC3-4	4	0.63 1	≤0.1	≤0.05	25-30	≤100	55	≤46	10-50	35-170	1：1	14000-31000	57
-5	5									35-190		17000-35000	70
_6	6									40-220		20000-45000	83
-7	7									45-240		24000-49500	90
-8	8									50-280		27000-56000	96
-9	9									50-290		31000-67000	105
-10	10									60-320		33590-69500	1 10
-11	11									60-350		37500-79000	118
GLC4-13	13	0.63 1	≤0.1	≤0.05	25-30	≤100	55	≤46	10-50	50-300	1：1	35000-70000	152
-15	15									50-320		38000-75000	164
-17	17									60-350		42000-83000	175
-19	19									60-400		46000-89500	188
-21	21									70-430		50000-93000	200
-23	23									70-450		55000-99000	213
-25	25									80-480		60000-102000	225
-27	27									80-520		60000-122000	238
GLC5-30	30	0.63 1 1.6	≤0.1	≤0.05	25-30	≤100	55	≤46	10-50	150-650	1：1	8-15	225
-34	34									150-700		8-17	280
-37	37									200-800		10-19	298
-41	41									200-850		10-21	322
-44	44									250-900		11-25	340
-47	47									250-950		11-27	357
-51	51									300-1000		13-30	380
-54	54									300-1100		13-33	398
QLC6-55	55	0.63 1	≤0.1	≤0.05	25-30	≤100	55	≤46	10-50	350-1150	1：1	15-35	418
-60	60									350-1200		15-38	442
-65	65									400-1250		17-41	469
-70	70									400-1300		17-45	498
-75	75									500-1350		20-50	525
-80	80									500-1400		20-55	550
-85	85									600-1500		25-60	575
-90	90									600-1600		30-70	602

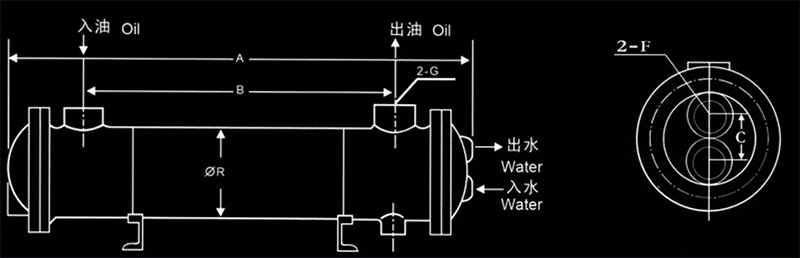

Size and shape：

Model	A	B	C	R	G	F
GLC-304	382	224	55	89	1"	¾"
GLC-305	454	296
GLC-306	526	368
GLC-307	598	440
GLC-308	670	512
GLC-309	742	584
GLC-310	814	656
GLC-311	886	728
GLC-312	958	800
GLC-406	345	160	60	114	1¼"	¾"
GLC-407	397	212
GLC-408	469	284
GLC-409	525	340
GLC-410	569	384
GLC-411	613	428
GLC-413	685	500
GLC-414	725	540
GLC-415	757	572
GLC-417	821	656
GLC-418	901	716
GLC-419	973	788
GLC-421	1045	860
GLC-426	1249	1064
GLC-514	502	270	70	140	1 ½"	1"
GLC-518	638	406
GLC-522	746	514
GLC-526	854	622
GLC-530	962	730
GLC-534	1070	838
GLC-538	1178	946
GLC-542	1286	1054
GLC-546	1394	1162
GLC-550	1502	1270
GLC-640	825	570	110	168	2"	1¼"
GLC-650	975	720
GLC-660	1125	870
GLC-670	1295	1040
GLC-680	1455	1200
GLC-690	1615	1360
GLC-6100	1785	1530

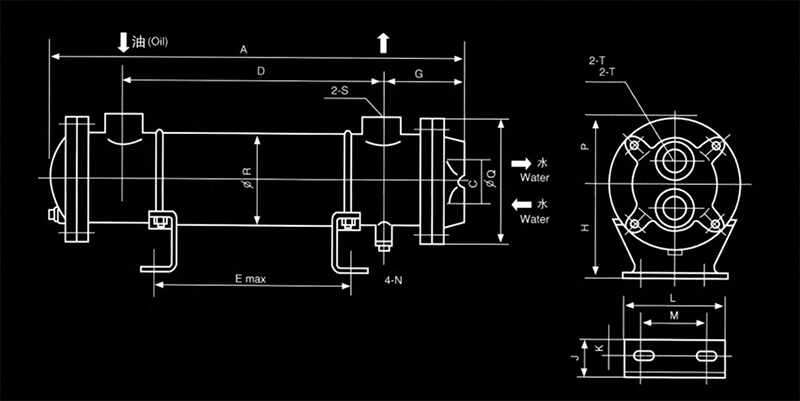

SL type tube cooler outline dimension drawing and dimension table：

Size/mm Model	A	C	D	E	G	H	J	K	L	M	N	P	Q	R	S	T	Weight
SL-303	309	45	152	107	81	87	35	15	95	58	11X20	62	120	87.9	¾”	¾”	5.5
SL-304	381		224	179													6
SL-305	453		296	251													6.5
SL-307	597		440	395													7
SL-309	741		584	539													8
SL-311	885		728	683													9
SL-408	469	60	284	240	95	125	50	20	160	110	18X22	87	150	114.3	1¼”	¾”	13
SL-411	613		428	384													16
SL-415	757		572	528													18
SL-418	901		716	672													21
SL-421	1045		860	816													24
SL-509	484	70	270	206	121	160	50	20	180	120	18X25	105	180	139.8	1½”	1 ”	24
SL-518	638		406	342													26
SL-526	854		622	558													31
SL-534	1070		838	774													36
SL-542	1286		1054	990													42
