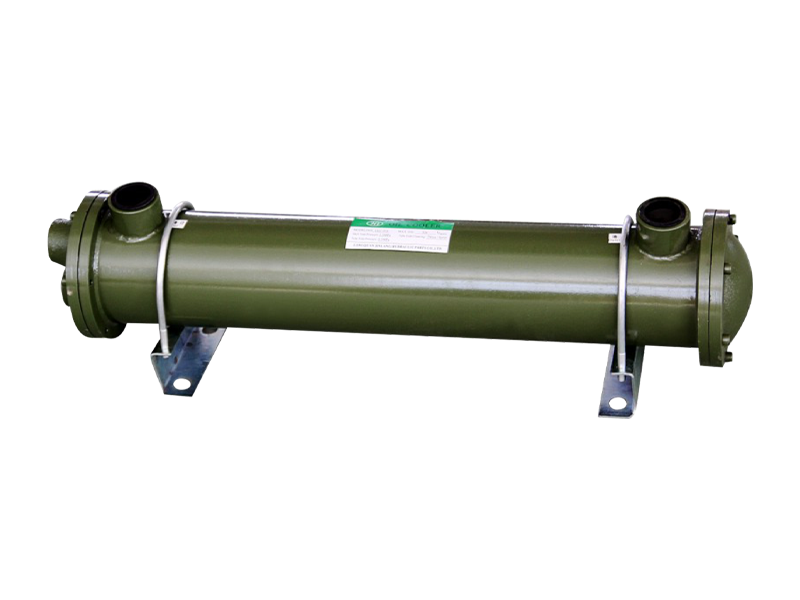

OR-MULTI-TUBE SERIES OIL PRESSURRE COOLER Custom

Home / Products / Spare Parts / OR-MULTI-TUBE SERIES OIL PRESSURRE COOLER

1.To determine the optimal cooling effect of heat transfer. The cooler adopts multi tube,

2.A cooling area. The cooler for all brass number, fin tube type and rolling type tube type three times above, cooling area in accordance with the brass surface calculation, so the cooling area full of.

3.The optimum cooling cooler material. Using pure copper tube, heat conduction rate of more than 0.95.

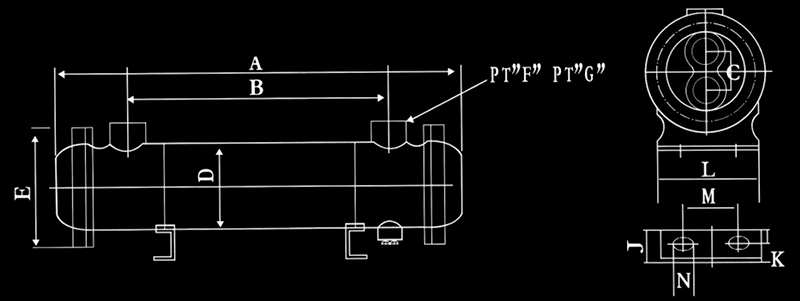

Model	A	B	C	ФD	E	F	G	J	K	ФL	M	N	Flow	Exchange heat (Kcal/h)	Weight
OR-60	450	305	46	90	120	3/4”	3/4”	23	11	115.5	57.5	11X20	60	0.26	7.6
OR-100	555	403	57	114	150	3/4”	3/4”	33	12.5	145.5	96	11X20	100	0.38	12.2
OR-150	575	385	76	140	180	11/4”	1"	30	12.5	175	130	13X18	150	0.62	18.3
OR-250	780	585	76	140	180	11/4"	1"	30	12.5	175	130	13X18	250	1.30	21.2
OR-350	1180	990	76	140	180	11/4”	1"	30	12.5	175	130	13X18	350	2.00	27.5
OR-600	1175	950	87	165	205	2"	11/4"	34	12.5	200	161	13X20	600	2.30	36
OR-800	1700	1490	87	165	205	2”	11/4"	34	12.5	200	161	13X20	800	3.00	46.2
OR-1000	2140	1890	87	165	205	2"	11/4"	34	12.5	200	161	13X20	1000	3.70	54.5
OR-1200	2530	2270	87	165	205	2”	11/4"	34	12.5	200	161	13X20	1200	4.40	64.8

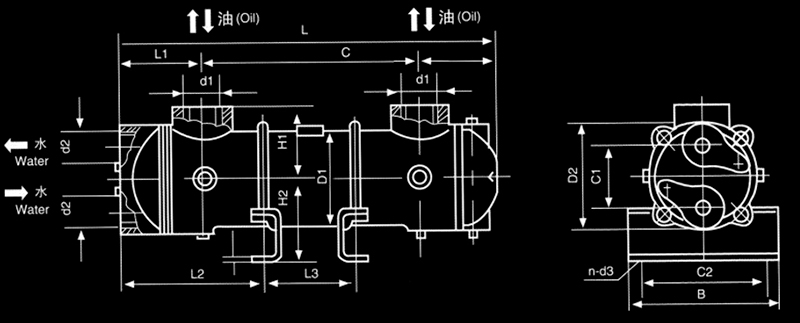

GLC type cooler exterior sketch map and the dimension table：

Model	L	C	H1	H2	D1	D2	C1	C2	B	L1	L2	L3	n-d3	dl	d2	Weight
GLC1-0.4	370	240	60	68	78	92	52	102	132	67	115	145	4- Ф11	G1 " (Dg25)	G¾" (Dg20)	8
GLC1-0.6	540	405										310				10
GLC1-0.8	660	532										435				12
GLC1-1	810	665										570				13
GLCM-1.2	940	805										715				15
GLC2-1.3	560	375	85	95	120	137	78	145	175	98	172	225	4- Ф11	G1 " (Dg25)	G1" (Dg25)	19
GLC2-1.7	690	500										350				21
GLC2-2.1	820	635										485				25
GLC2-2 6	960	775										630				29
GLC2-3	1110	925										780				32
GLC2-3.5	1270	1085										935				36
GLC3-4	840	570	125	158	168	238	110	170	210	152	245	380	4- Ф15	G1½"(Dg36)	G1¾" (Dg30)	74
GLC3-5	990	720										530				77
GLC3-6	1140	870										680				85
GLC3-7	1310	1040										850				90
GLC3-8	1470	1200										1010		G2" (Dg50)	G1½"(Dg36)	96
GLC3-9	1630	1360										1170				105
GLC3-10	1800	1530										1340				110
GLC3-11	1980	1710										1520				118
GLC4-13	1340	985	160	208	219	305	140	270	320	197	318	745	4- Ф19	G2" (Dg50)	G2" (Dg50)	152
GLC4-15	1500	1145										905				164
GLC4-17	1660	1305										1065				175
GLC4-19	1830	1475										1235				188
GLC4-21	2010	1655										1415				200
GLC4-23	2180	1825										1585				213
GLC4-25	2360	2005										1765				225
QLC4-27	2530	2175										1935				238
GLC5-30	1932	1570	200	234	273	355	180	280	320	202	327	1320	4- Ф23	G2½" (Dg60)	G2" (Dg50)
GLC5-34	2152	1790										1540
GLC5-37	2322	1960										1710
GLC5-41	2542	2180										1930
GLC5-44	2712	2350										2100
GLC5-48	2872	2510										2260
GLC5-51	3092	2730										2480
GLC5-54	3262	2900										2650
GLC6-55	2272	1860	230	284	325	410	200	300	390	227	362	1590	4- Ф23	G3” (Dg70)	G2½"(Dg60)
GLC6-60	2452	2040										1170
GLC6-65	2632	2220										1950
GLC6-70	2812	2400										2130
GLC6-75	2992	2580										2310
GLC6-80	3172	2760										2490
GLC6-85	3352	2940										2670
GLC6-90	3532	3120										2850
