Product overview

YCT series electromagnetic speed motor is an AC constant torque variable speed motor. Slip by the electromagnetic clutch, the drive motor and tachogenerator, usually with the JD,TXZ,CTK series controller composed of a set of exchange has a the velocimetry negative feedback system stepless drive, a wide speed smooth stepless speed regulation, it is with in China's unified design new Electromagnetic Motor has the advantages of high efficiency, low noise, vibration, high reliability, and aesthetic appearance. And in line with national international Electrotechnical Commission(IEC) standards. The series electromagnetic governor motor is widely applied in textile, printing and dyeing, A variety of food, chemical, paper, cement, rubber, plastics, cables, metallurgy, mining and other areas of constant torque stepless speed devices, especially for fans, pumps, load torque decreasing occasions, Controlled by the speed of adjustment to changes in flow or pressure to obtain a significant energy saving effect.

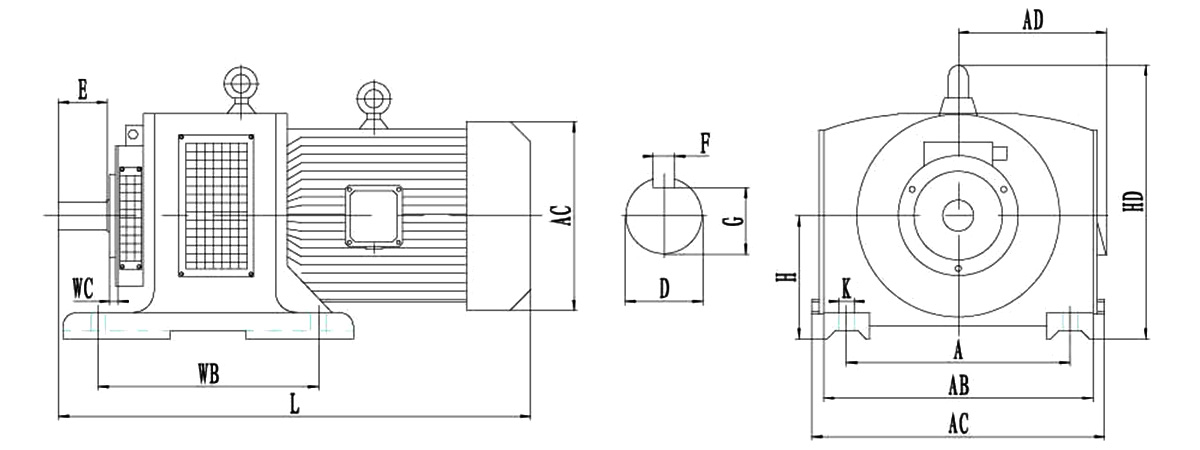

Series mouting and ovrall dimensinons

Frame		Fixing Measurement										Figure size					Weigh (kg)
size		A	A/2	WB	WC	D	E	F	G	H	K	AB	AC	AD	HD	L
90	-4A	160	80	178	40	18	40	6	14.5	90	10	190	200	130	220	480	34
	-4B																36
112	-4A	190	95	210	40	19	40	6	15.5	112	12	240	260	150	280	520	50
	-AB																53
132	-4A	216	108	241	40	24	50	8	20	132	12	285	310	165	330	570	75
	-4B															585	77
160	-4A	254	127	267	45	28	60	8	24	160	15	330	350	185	385	665	112
	-4B																117
180	-4A	279	139.5	305	45	28	60	8	24	180	15	365	385	195	430	700	157
200	-4A	318	159	356	50	38	80	10	33	200	19	410	430	235	485	820	224
	-4B															860	244
225	-4A	356	178	406	56	42	110	12	37	225	19	465	485	270	545	980	390
	-4B															1025	420
250	-4A	406	203	457	63	48	110	14	42.5	250	24	520	540	295	595	1130	460
	-4B															1170	502
280	-4A	457	228.5	508	70	55	110	16	49	280	24	575	595	320	665	1280	632
315	-4A	508	254	560	89	60	140	18	53	315	28	645	670	345	770	1400	810
	-4B															1425	850
	-4A	610	305	630	108	65	140	18	58	355	28	755	780	390	890	1550	1510
355	-4B					75		20	67.5					420		1630	1655
	-4C															1680	1700
400	-4A	630	315	710	108	80	170	22	71	400	32	800	820	500	820	1980	2050
	-4B															2030	2150
	-4C																2210

ZHEJIANG QIZHI MOTOR CO., LTD. is a professional production of various kinds of small and medium-sized modern enterprise, the main products include ME2 series Grundfos high-efficiency aluminum motor, YCT series electromagnetic speed regulating motor, IE1 series three-phase asynchronous motor, IE2 series three-phase asynchronous motor, IE3 series super efficient three-phase asynchronous motor, YD series pole-changing multi-speed three phase asynchronous electric motor, YDT series three-phase consequent-poles asynchronous motor, YCT series electromagnetic speedregulating motor, MS series three-phase asynchronous motor with aluminium housing, YVF2 series three-phase frequency controlled asynchronous motor, YVF2 series of frequency conversion aluminum shell speed three-phase asynchronous motor, YEJ series electromagnetic braking three-phase asynchronous motor, YC/YCL series heavy-duty single-phase capacitors start induction motor, MLYL seriessingle-phase dual-capacitor induction motor, YYB Series pump for three-phase asynchronous motor, IRG/SW Single stage single pipette centrifugal pump, CDLICDLF stainless steel vertical multistage pump, etc. OEM YCT series electromagnetic speed regulating motor Factory

ZHEJIANG QIZHI MOTOR CO., LTD. depending on the talent for the enterprise development, with strong technology research and development team, has the industry's most advanced automated nc production equipment, advanced technology and equipment, usingadvanced design software for product design, perfect modern management system, strictly in accordance with "ISO-9001"national quality management system certification, production to make the success rate of new product development speed and improve, for the same industry leading level. As Custom YCT series electromagnetic speed regulating motor Suppliers, the company has advanced motor testing equipment, to guarantee product quality, won the domestic andforeign customers a wide range of trust and praise, the company through the Chinese CCC certification and CQC certification, ISO-
9001 international quality system certification, CE certification, SGS certification (ROHS), and obtained the national electrical products export quality license, with our continuously innovation in the face of the market; The products sell well all over the country and exported to southeast Asia, Germany, Italy, Poland, Britain, France, the Middle East, South America, Africa, Asia, etc. More than 80 countries and regions. In domestic widely used in air compressor, washing machine, water pump, fan, mechanical industry, reducer, such as the host.

We would like to more higher quality product, more lower preferential price, complete thoughtul pre-sale, sale, after-sale service, cooperate with friends from all walks of life, hand in hand advance together, altogether will create the glorious future.
